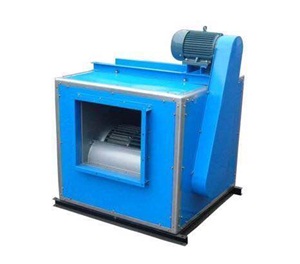

厨房油烟排放设备主要包括抽油烟机、油烟净化器、风机、风箱、控制箱、排烟管等,其覆盖面积大于灶台面积,为了更好的使用相关设备,下面小编为您讲解下
济南厨房排烟设备安装的基本常识吧。
Kitchen lampblack emission equipment mainly includes range hood, lampblack purifier, fan, bellows, control box, smoke exhaust pipe, etc. Its coverage area is larger than the area of the stove. In order to better use the relevant equipment, the following brief section will explain the basic knowledge of the installation of smoke exhaust equipment in Jinan kitchen.
1、厨房抽油烟机出风口摆放位置正确,外露部位整齐。保温钉粘贴前,风管墙上的灰尘和油污,分别在风管和保温钉上涂胶水,稍干后粘贴。保温钉的密度为12根/m2。
1. The air outlet of kitchen range hood shall be placed correctly and the exposed parts shall be neat. Before pasting the insulation nails, remove the dust and oil stain on the air duct wall, apply glue on the air duct and insulation nails respectively, and paste them after they are slightly dry. The density of insulation nails is 12 pieces/m2.
2、悬挂支架、规格、间隔须符合设计要求,拉杆不得安装在喷嘴阀上。管道线束要牢固,升降和转向位置须符合设计要求。总成须安装在正确方向,便于操作,防火阀检修口应便于操作。
2. The suspension bracket, specification and spacing must meet the design requirements, and the pull rod shall not be installed on the nozzle valve. The pipe harness shall be firm, and the lifting and turning positions shall meet the design requirements. The assembly must be installed in the correct direction for easy operation, and the fire damper access hole should be easy to operate.
3、630mm以下新建风管采用非兰管连接方式,采用非兰管加工而成。不能连兰的风管接口采用机械加工,尺寸准确,形状规整,接口狭窄,用镶条法兰连接镶条,采用0.8mm镀锌钢板。插入条两端在两个平面各压接20mm,安装导管时连接插入条和导管;吊导管时,请使用聚合物密封剂进行密封。
3. The new air duct below 630 mm is connected by non blue pipe, which is processed by non blue pipe. The interface of the air duct that cannot be connected to the flange shall be machined, with accurate size, regular shape and narrow interface. The strip flange shall be used to connect the strip, and 0.8mm galvanized steel plate shall be used. Both ends of the insertion strip shall be crimped 20mm on two planes respectively, and the insertion strip and the conduit shall be connected when installing the conduit; When lifting the conduit, use polymer sealant for sealing.
4、漏光法应采用强光穿透力小孔,检查系统风道密封性,使用一定强度的光源。带保护套和其他低压光源的100W低压低压照明。低压管道每根不超过2个,100m接头平均不超过16个,中压系统每10m不超过1个,100m接头平均不超过8个,均为轻型漏光。如果在测试中发现狭缝状漏光,须立即密封。
4. The light leakage method shall use strong light penetration holes to check the tightness of the system air duct, and use a light source with a certain intensity. 100W low-voltage low-voltage lighting with protective sleeve and other low-voltage light sources. There shall be no more than 2 low-pressure pipes, no more than 16 100 m joints on average, no more than 1 medium pressure system every 10 m, and no more than 8 100 m joints on average, all of which are light light leaks. If a slit light leak is found during the test, it must be sealed immediately.
5、漏风量测量须使用合格的专用测量仪器,或配置符合现行标准(流量测量调节装置)测量项目的测量装置。燃气泄漏试验装置可采用燃气管式或气室式。风管式试验机以孔板为计量要素,气室式试验机以喷嘴为计量要素,实测值和设计规定值10%为合格。
5. The air leakage measurement must use qualified special measuring instruments, or be equipped with measuring devices that meet the current national standards (flow measurement and regulation devices). The gas leakage test device can be of the gas pipe type or the gas chamber type. The orifice plate is the measuring element of the air duct type testing machine, and the nozzle is the measuring element of the air chamber type testing machine. 10% of the measured value and the design specified value are qualified.
厨房排烟设备安装的基本常识就介绍到这里了。相信大家读完这篇文章后,会对厨房排烟有更好的认识。但愿以上内容对大家有所帮助,建议大家定期保养这些排烟设备,以尽量延长其使用寿命。更多事项就来我们网站
http://www.jnqsg.com咨询吧!
So much for the basic knowledge of kitchen smoke exhaust equipment installation. I believe you will have a better understanding of kitchen smoke after reading this article. I hope the above information will be helpful to you. We suggest that you maintain these smoke exhaust devices regularly to prolong their service life as much as possible. Come to our website for more information http://www.jnqsg.com Consult!
